Introduction

What’s NSDK

NSDK is short for Newland Software Development Kit. It provides Android APIs to enable developers to access Newland POS(Point Of Sale) modules, such as PIN pad, magnetic stripe card, contact/contactless card. It is aimed to be a standard Newland POS SDK. As there is a standard Newland POS SDK in C which is NAPI, NSDK is designed to play the same role as NAPI in Java.

NSDK vs MESDK

Compared to MESDK:

NSDK provides only the basic and standard Newland POS APIs and is not subject to customer-specific modifications. In contrast, MESDK is open to customization and has already incorporated several customer requirements, with plans to continue supporting such requests.
NSDK emphasizes the reusability of Newland POS APIs. Since it is fine-grained and free from customer-specific customizations, it offers greater flexibility for customers to build their own SDKs or develop payment applications.

Device Requirements

NSDK is designed for devices running Android 7.0 and above. For now, NSDK can be used on the following devices:

Device Model	OS Firmware	Platform	Remark
N910 A7	`V1.0.19` or higher	Android
N910 Pro	`V1.1.02` or higher	Android	`RouteManager` module is only supported on `V1.1.47` or higher.
N850 A7	`V1.0.05` or higher	Android
N700 A7	`V1.0.06` or higher	Android
CPOS X5	`V1.0.60` or higher	Android	Non-security modules supported.
N950 A10	`V1.1.03` or higher	Android
N950 A12	`V1.0.00` or higher	Android	`RouteManager` module is only supported on `V1.1.12` or higher.
X800	`V1.0.03` or higher	Android
U2000 A12	`V1.1.02` or higher	Android
N950K	`V1.0.01` or higher	Android
N750 A12	`V1.0.09` or higher	Android
P300 A11	`V1.1.05` or higher	Android	`RouteManager` module is only supported on `V1.1.05` or higher.

And NSDK supports to communicate with external PIN pad devices as below:

Device Model	OS Firmware	Remark
ME30SU	`V2.6.8` or higher `V3.0.3` or higher
SP130	For External Newland Pin-pad Specification Command Set: `V7.00.29` or higher.	Only `V7.00.29` can support cipher mode to send APDU.

What NSDK Provides

NSDK provides two sets of libraries for different development scenarios:

Packages with internal and external modules

Newland-NSDK-x.x.x.aar: Including internal modules.
NSDK-Plugin-Ext-x.x.x.aar: Including external modules to interact with external pinpad devices, such as ME51P, SP100 and ME30SU.
NSDK-Plugin-Card-x.x.x.jar: Provides methods, such as authenticate, to operate M0, M1, Felica cards. But it is strongly recommended that use Newland-NSDK-RFIC-x.x.x.aar instead.

Packages with external modules only

Usually these packages are used when developing applications on common android devices (e.g., android mobile phones):

Newland-NSDK-Ext-x.x.x.aar: Including external modules.
NSDK-Plugin-Card-Ext-x.x.x.jar: Provides methods, such as authenticate, to operate M0, M1, Felica cards.

Note

If you are using proguard rules, please keep:

-keep class com.newland.nsdk.*{*;}
-keep class com.newland.nsdk.**{*;}
-keep class android.newland.*{*;}
-keep class android.newland.**{*;}

NSDK Scenarios

	Newland-NSDK-x.x.x.aar NSDK-Plugin-card-x.x.x.jar	Newland-NSDK-x.x.x.aar NSDK-Plugin-Ext-x.x.x.aar NSDK-Plugin-card-x.x.x.jar	Newland-NSDK-Ext-x.x.x.aar NSDK-Plugin-card-x.x.x.jar
N910	√
N700	√
N850	√
N850+SP100/ME51P/ME30SU		√
CPOS+ SP100/ME51P/ME30SU		√
Mobile+ME30SU			√

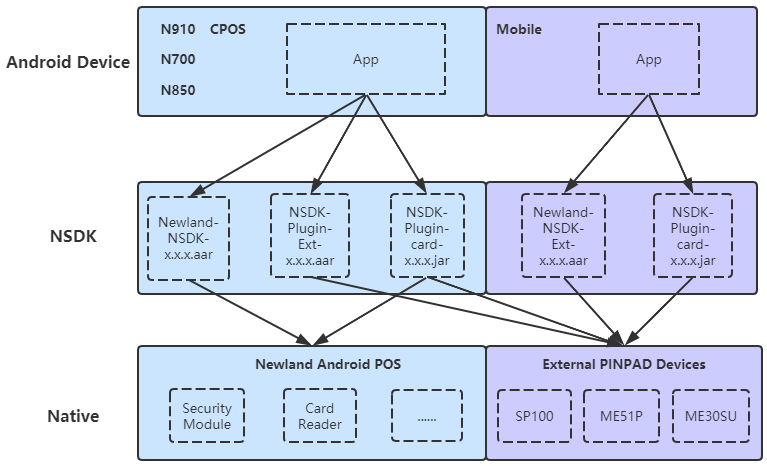

Below diagram shows layer details of these scenarios:

NSDK Architecture

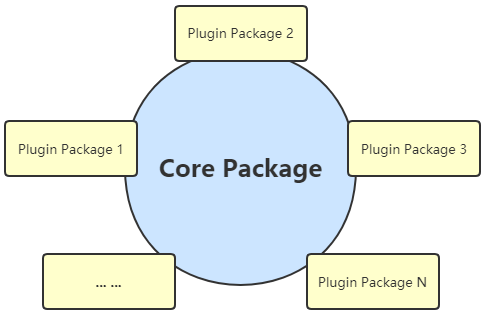

NSDK is designed with "Core Package + Plugin Packages" pattern.

Core Package: Provides all the main modules of a POS device. For card module, it only supports the cards for EMV/Financial transaction (Magnetic stripe card/EMV Contact card/EMV Contactless card).
Plugin Packages: Provide additional or less important features. These packages are imported according to user's needs. Following plugin packages are provided by NSDK now:
- Plugin-Card: This package supports other types of Contact/Contactless cards, such as SAM/Sle44X2 card, M1/M0/Felica card.

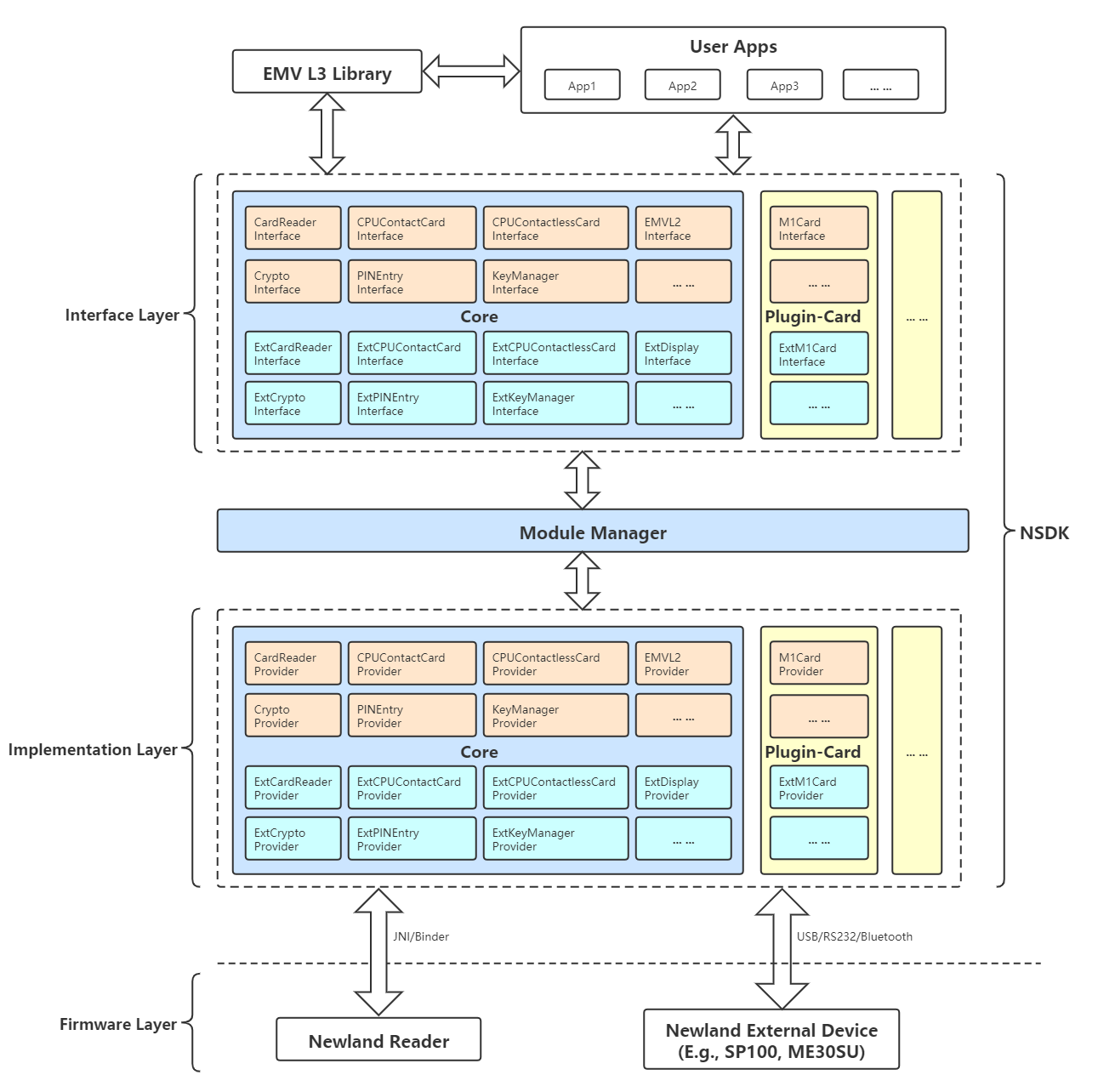

For more details of NSDK architecture, see below diagram:

As the diagram showed:

NSDK provides POS related interfaces for users to develop applications.
NSDK provides both internal modules and external modules (with "Ext" prefix in their module names).
All the modules are managed and accessed by NSDK module manager.
EMV L3 library is based on NSDK and provided as a single package. It is more convenient for user to use EMV L3 library instead of NSDK to implement transactions.

NSDK Modules

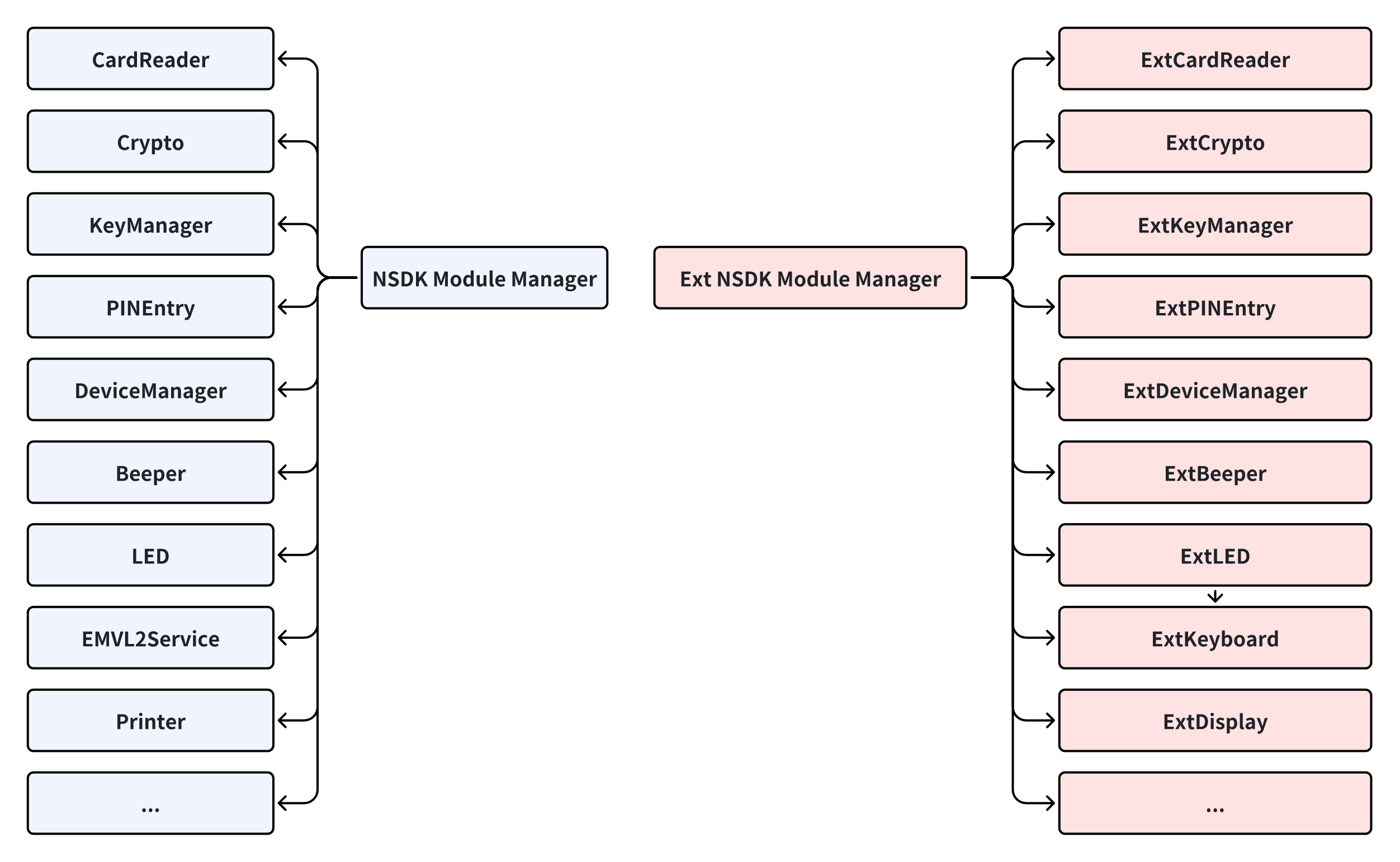

Module Manager

Module manager is the main entrance of NSDK. There are “NSDK Module Manager” and “Ext NSDK Module Manager”. Both of them are singleton. All the internal device modules are managed by NSDK Module Manager while all the external device modules are managed by Ext NSDK Module Manager.

Internal Modules

BarcodeDecoder	Provides the ability to decode barcode.
CardReader	Responsible for card searching of Magnetic/Contact/Contactless cards. Concrete card instance can be newed to continue to operate the inserted/tapped card, e.g., CPUContactCard(provided in NSDK core package), M1Card(Provided in NSDK plugin package).
Crypto	Provides crypto interface, e.g., MAC generation, data encryption/decryption.
KeyManager	Used to manage keys.
PINEntry	Used for user to input online PIN or offline PIN.
DeviceManager	Provides device info related interface.
Beeper	Provides the ability to beep.
LED	Provides the ability to control LED lights.
CashBox	Provides the ability to open cash box.
SettingsManager	Provides the ability to set/get system settings configuration, e.g., screen brightness, default input method.
EMVL2Service	Provides EMV L2 functions.
Printer	Provides the ability to print receipts.
RouteManager	Provides the ability to configure which network is employed for accessing a specified IP, which includes WIFI, Ethernet and Mobile network.
BootProvider	Provides the ability to set custom boot animation, boot logo and default launcher.
DeviceStatisticsManager	Provides the ability to get the device statistics information.
Recovery	Provides the ability to reset A10 device to factory data.
BarcodeScanner	Provides the ability to perform hard-scanning decode with N750 hard scanner.
SerialPortManager	Provides the ability to create instances of different serial port.
GuestDisplayManager	Provides the ability to operate guest display screen.

External Modules

Supported by external devices which can be connected to the host terminal via serial port/USB/bluetooth.

ExtScanner	Provides the ability to scan barcode.
ExtCardReader	Responsible for card searching of Magnetic/Contact/Contactless cards. Concrete card instance can be newed to continue to operate the inserted/tapped card, e.g., ExtCPUContactCard(provided in NSDK core package), ExtM1Card(Provided in NSDK plugin package).
ExtCrypto	Provides crypto interface, e.g., MAC generation, data encryption/decryption.
ExtKeyManager	Used to manage keys.
ExtPINEntry	Used for user to input online PIN or offline PIN.
ExtDeviceManager	Provides the ability to get device info or operate device, e.g., get device configuration, update FW/App, reboot.
ExtBeeper	Provides the ability to beep.
ExtLED	Provides the ability to control LED lights.
ExtKeyBoard	Provides the ability to use the external device as a normal keyboard to input digits or characters.
ExtDisplay	Provides the ability to display text or image on the external device screen.
ExtECDHE	Provides the ability to process the ECDHE algorithm.
ExtESignature	Provides the ability to start electronic signature process.
ExtCardEmulator	Provides the ability to handle the card emulation process.
